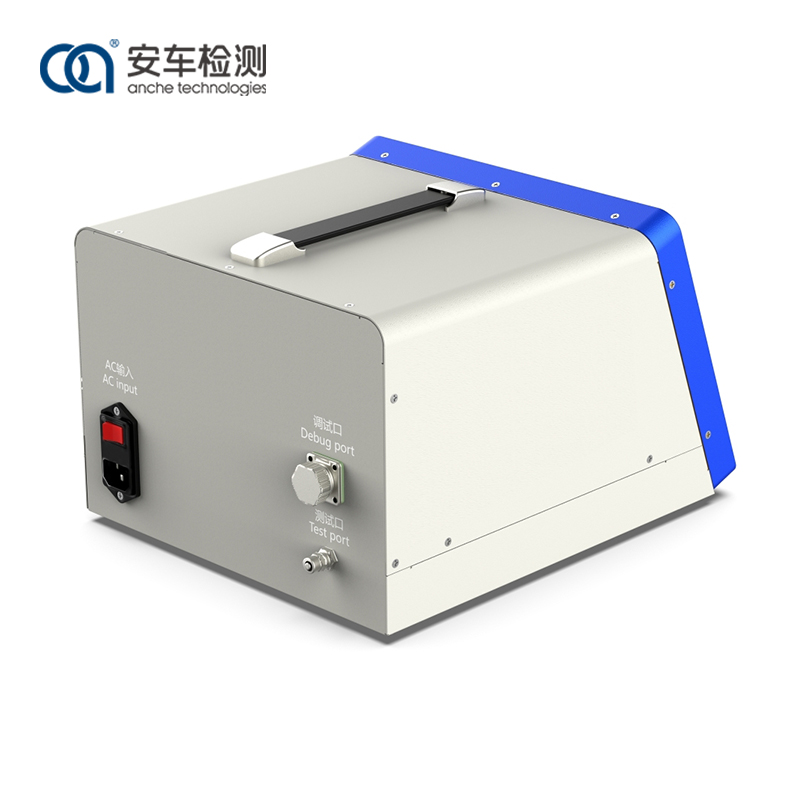

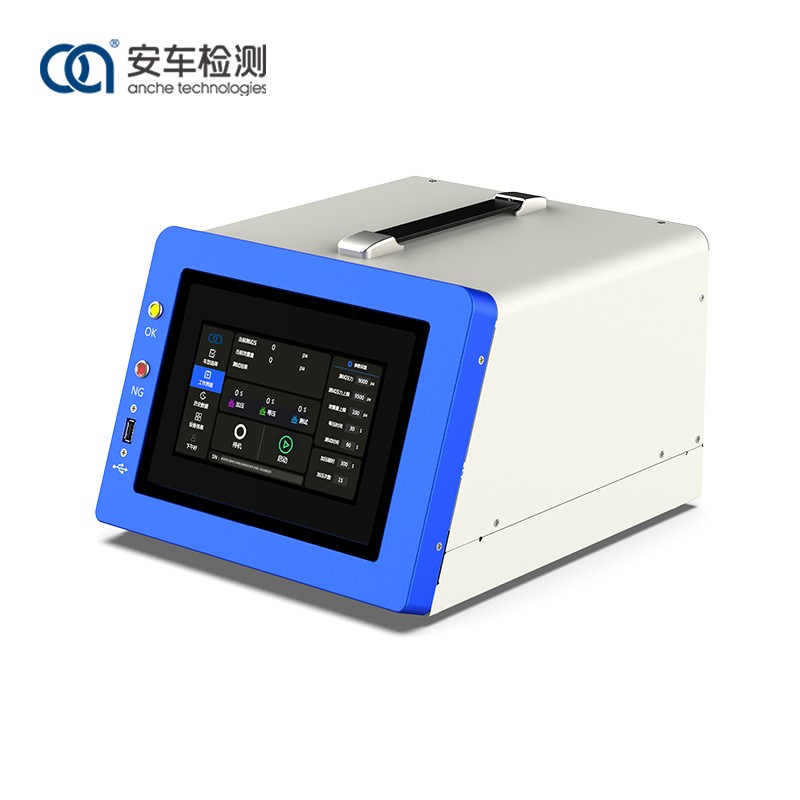

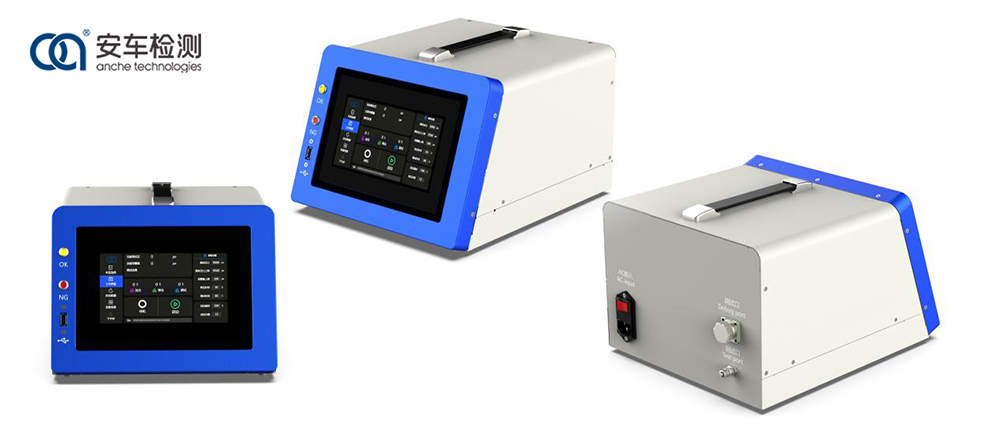

Roj teeb pob Air Tightness Tester

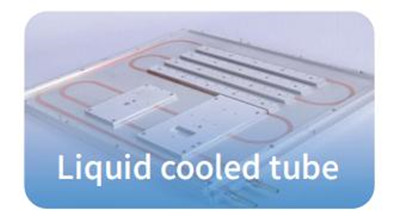

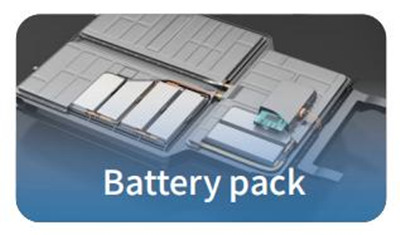

Lub roj teeb pob cua nruj tester yog tsim tshwj xeeb rau kev muag khoom tom qab kev lag luam ntawm lub zog tshiab tsheb thiab haum rau kev ntsuas dej tsis zoo thiab huab cua nruj ntawm cov khoom xws li cov kav dej txias, roj teeb pob, thiab cov khoom seem ntawm cov tsheb tshiab. Nws yog portable thiab ntau yam thiab muaj peev xwm ua tau high-precision non-destructive xeem, xam cov kev hloov siab los ntawm lub tester lub siab rhiab heev sensing system, thiab yog li txiav txim siab huab cua nruj ntawm cov khoom.

Xa lus nug

Product Description

Qhov zoo

1. Nws tuaj yeem ua tiav qhov tseeb ntawm 0.02% FS, uas yog tsim rau ntau qhov kev xav tau thiab raug qhov xwm txheej thiab kev siv.

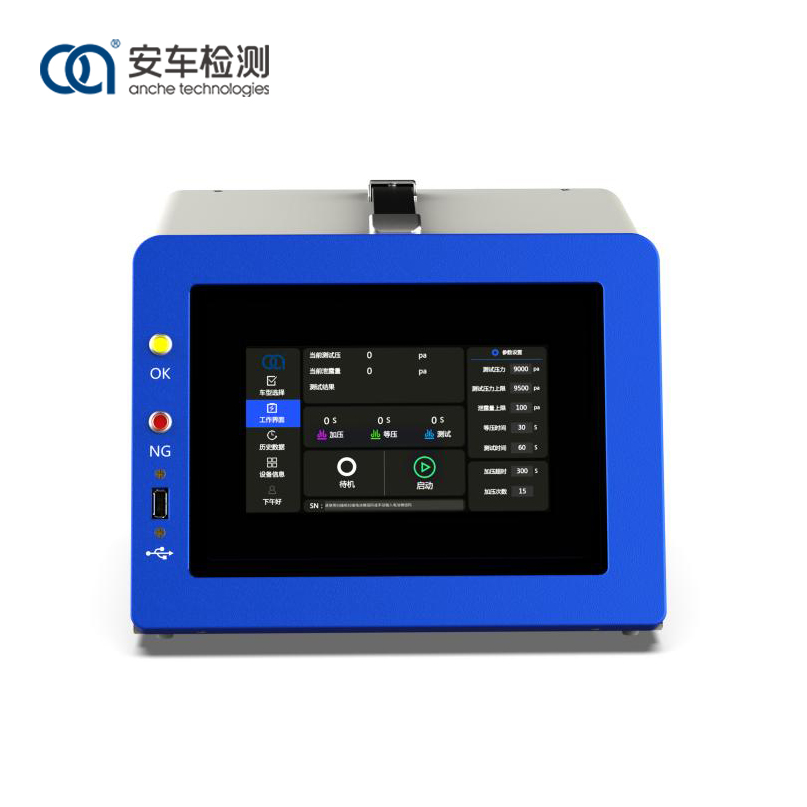

2. Android + capacitive npo, 16GB nco, 10-nti capacitive screen thiab ntau lub tswv yim tswj.

3. Nws tuaj yeem kho qhov siab. Thaum lub hom phiaj siab tus nqi yog cov tswv yim, thiab qhov kev hloov kho qhov tseeb yog nyob rau hauv ± 200Pa thiab qhov tseeb tsis siv neeg hloov siab tuaj yeem ua tiav.

4. Magnetic detection interface thiab ruaj khov muaj zog sib nqus qauv tuaj yeem tiv taus qhov hluav taws xob ntawm 600KPa.

5. Ntau yam kev sib txuas lus interfaces, xws li. built-in RS232 serial chaw nres nkoj, USB kev sib txuas lus interface, tuaj yeem txhawb ntau yam kev sib txuas lus.

Tsis muaj

Yam khoom	Roj teeb pob Air Tightness Tester
Kev xeem ntau yam	Tsis tshua muaj siab 0-10KPa, siab siab 0-500KPa
Kev daws teeb meem	1 pab
Kev ntsuas qhov tseeb	0.1% FS rau qhov tsis tshua muaj siab thiab siab siab
Kev ntsuas nruab nrab	Lim cua qhuav
Kev sib raug zoo	Deviation≤0.02%FS
Kev tiv thaiv overvoltage	Yog lawm
Lub sijhawm ntsuas	Kho tau hauv 0-999s
Fais fab mov	AC220V, 50/60Hz
Test roj	Cov cua compressed 0.5-0.7MPa
Cov ntaub ntawv keeb kwm	10,000 pieces
Chav kawm tiv thaiv	IP41
