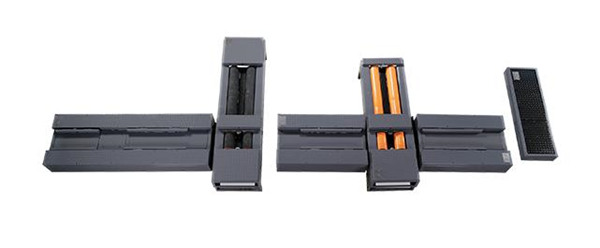

Maus Taus Lane

Tus qauv

Hom 500 (txhua tus qauv)

250 hom (ob-wheeter)

Daim ntawv thov

Log load (kg)

A≤500

A≤250

Lub log tsheb dav (hli)

40-250

40-250

Log puag (hli)

900-2,000

900-1,700

Av tshem tawm

≥65

≥65

Tsheb log sab hauv dav ntawm ib txwm muaj peb lub log muaj log

≥800

Lub log nram qab sab nraud dav ntawm ib txwm muaj peb lub cev muaj log maus taus

≤1,600

Maus Taus Log Load Test

Uas phaj loj (L x w)

1,600x430

350x180

Max. hnyav (kg)

500

250

Kev daws teeb meem (kg)

1

Indermation Yuam Kev

± 2%

Zuag qhia tag nrho loj (LxWxh) hli

1,690x520x178

400x520x158

Kev ntsuam xyuas maus taus nres

Rated load (kg)

500

250

Lub cev muaj zog (KW)

2x0.75Kw

0.75kw

Cov menyuam loj (hli)

Φ195x1,000 (cov menyuam ntev)

Ib195x300 (Cov Menyuam Luv Luv)

Φ195x300

Cov Menyuam Cov Menyuam Nyob nrug (MM)

310

310

Ntsuas ntsuas max. braking yuam (n)

3,000

1,500

Braking force indication yuam kev

<± 3%

Lub cev muaj zog muab khoom

AC380 ± 10%

Ua haujlwm siab (Mpa)

0.6-0.8

Zuag qhia tag nrho loj (LxWxh) hli

2710x740x250

1,150x740x250

Maus taus kev ntsuas ceev

Rated load (kg)

500

250

Lub cev muaj zog (KW)

3

3

Cov menyuam loj (hli)

Φ190x1,000 (cov menyuam ntev)

Φ190x300 (cov menyuam luv)

Φ190x300

Cov Menyuam Cov Menyuam Nyob nrug (MM)

310

310

Ntsuas ntsuas max. Kev nrawm (KM / H)

60

Kev daws teeb meem (KM / H)

0.1

Lub cev muaj zog muab khoom

AC380 ± 10%

Ua haujlwm siab (Mpa)

0.6-0.8

Zuag qhia tag nrho loj (LxWxh) hli

2,290x740x250

1,150x740x250

Maus taus log ib qib zuj zus

Chaw nyob deb ntawm pem hauv ntej thiab nram qab tig clamps (mm)

1,447

Clamp zoo stroke (mm)

40-250

Qhov ntsuas siab ntsuas (hli)

Nclus 10

Taw qhia yuam kev (hli)

0.2

Ua haujlwm siab (Mpa)

0.6-0.8

Zuag qhia tag nrho loj (LxWxh) hli

2,580x890x250

Maus taus clamp

Clamp zoo ntev (hli)

1,340

Clamp zoo stroke (mm)

40-300

Tau qhov twg los siab (mpa)

0.6-0.8

Zuag qhia tag nrho loj (LxWxh) hli

1,400x890X250
