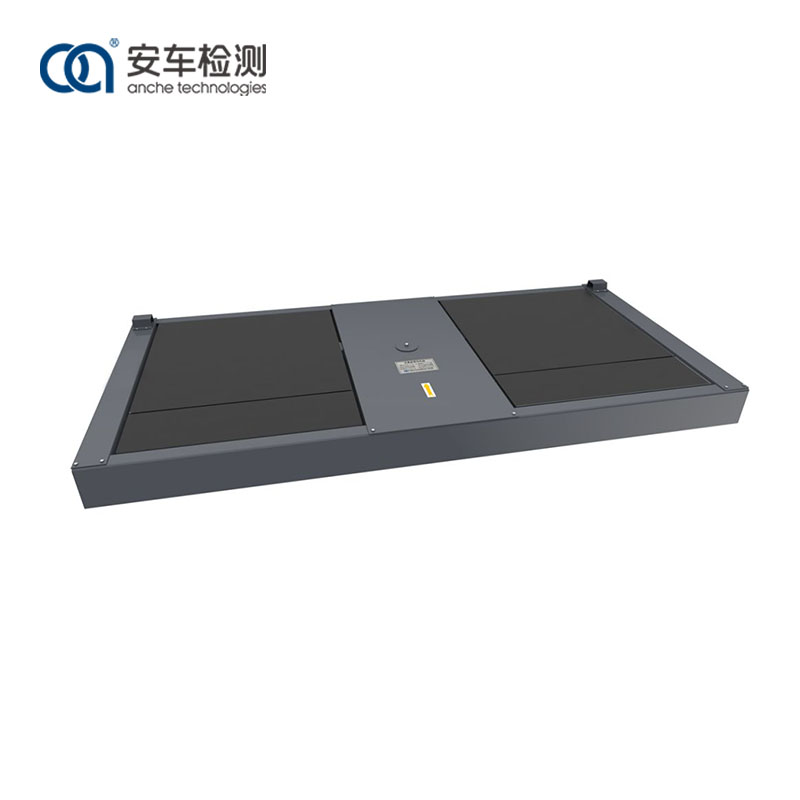

3-Tuj Sab Slip Tester

Anche yog cov chaw tsim khoom lag luam ntawm sab swb testers nrog cov kws tshaj lij thiab muaj zog R & D thiab pab pawg tsim, uas tuaj yeem hloov kho cov kev xav tau ntawm cov neeg siv khoom sib txawv. Anche 3-tuj sab slip tester tshwj xeeb yog siv los ntsuas qhov sib txuam ntawm lub log camber thiab ntiv taw-hauv thaum khiav ntawm 3-tuj tsheb, manifested raws li tus nqi ntawm sab swb ntawm lub log. Anche side slip tester yog ib qho cuab yeej uas kuaj xyuas qhov kev txav mus los ntawm lub kauj lub kauj ntawm lub tsheb, yog li txiav txim siab seb qhov kev cuam tshuam ntawm lub tsheb puas tsim nyog. Nws yog ib qho ntawm cov cuab yeej siv rau kev ntsuas kev nyab xeeb kev ua haujlwm thiab kev ua tiav ntawm lub cev muaj zog.

Xa lus nug

Product Description

Txoj haujlwm ua haujlwm:

Lub tsheb mus ncaj nraim mus rau 3-tuj sab swb tester. Raws li lub kauj tsheb hla los ntawm lub phaj, nws yuav tsim ib qho kev quab yuam sab nraud rau txoj kev tsav tsheb ntawm lub phaj. Nyob rau hauv lub laub ntawm lub lateral quab yuam, ob daim hlau swb sab hauv lossis sab nraud tib lub sijhawm. Lub lateral plam ntawm lub phaj yog hloov mus rau hauv hluav taws xob teeb liab los ntawm kev xaav sensors, thiab lateral slip tus nqi yog xam los ntawm kev tswj qhov system.

Khoom nta:

1. Nrog rau cov qauv kev sib koom ua ke, lub tester yog welded ua ke nrog tag nrho cov square steel yeeb nkab thiab carbon steel phaj qauv, nrog cov qauv tsim muaj zog thiab niaj hnub zoo li.

2. Cov khoom ntsuas ntsuas siv cov cuab yeej hloov pauv siab, uas tuaj yeem tau txais cov ntaub ntawv raug thiab raug.

3. Lub teeb liab kev twb kev txuas interface txais ib tug aviation plug tsim, uas ua kom ceev thiab npaum installation thiab ruaj khov thiab txhim khu kev qha cov ntaub ntawv.

4. Nws tau nruab nrog cov paib so kom tso tawm lateral quab yuam ntawm cov tsheb nkag mus rau hauv lub cuab yeej, kom ntseeg tau qhov tseeb ntawm qhov tseem ceeb.

5. Nws yog txawm peem rau nrog ib tug locking mechanism rau xauv lub phaj nyob rau hauv uas tsis yog-kev soj ntsuam cov xwm txheej los tiv thaiv kev puas tsuaj rau lub mechanism.

Daim ntawv thov:

Anche 3-tuj sab swb tester yog tsim thiab ua nruj me ntsis raws li Suav teb cov qauv JT/T507-2004 Tsheb sab swb tester thiab JJG908-2009 Tsheb sab swb tester. Lub tester muaj cov qauv tsim thiab nruab nrog cov khoom ruaj khov thiab ruaj khov. Tag nrho cov cuab yeej yog qhov tseeb hauv kev ntsuas, yooj yim hauv kev ua haujlwm, kev ua haujlwm dav dav thiab pom meej hauv cov zaub. Cov txiaj ntsig kev ntsuas thiab cov ntaub ntawv qhia tuaj yeem tshwm sim ntawm lub vijtsam LED.

Anche side slip tester yog tsim rau kev lag luam thiab thaj chaw sib txawv, thiab tuaj yeem siv rau kev saib xyuas thiab kuaj mob hauv tsheb tom qab kev lag luam, nrog rau kev tshuaj xyuas tsheb ntawm cov chaw sim.

Parameters 3-Ton Side Slip Tester

Qauv	ACCH-3
Tso cai ncej loj (kg)	3000
Kev ntsuas ntsuas (m / km)	± 10
Qhov taw qhia yuam kev (m / km)	± 0.2
Sab swb qhov loj (mm)	1000 × 1000 hli
Relaxing board size (mm) (yeem)	1000 × 300
Tag nrho qhov ntev (L × W × H) mm	2990 × 1456 × 200 hli
Sensor fais fab mov	DC 12 V
Qauv	Kev sib txuas ntawm ob lub phaj

Paub meej:
