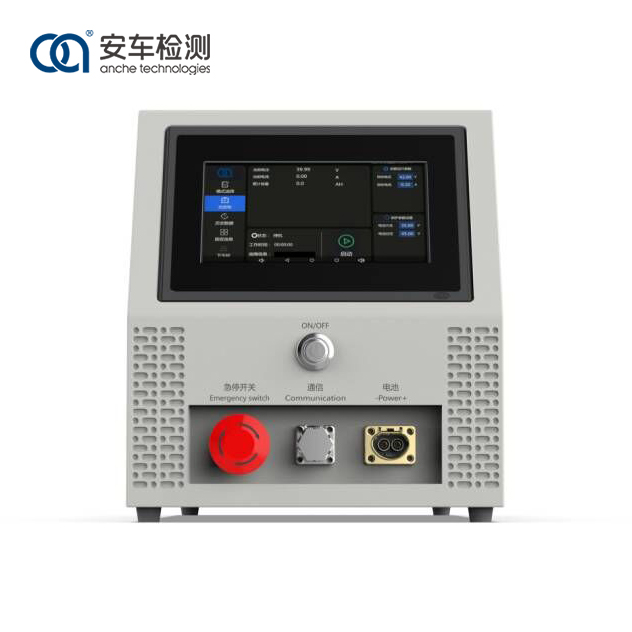

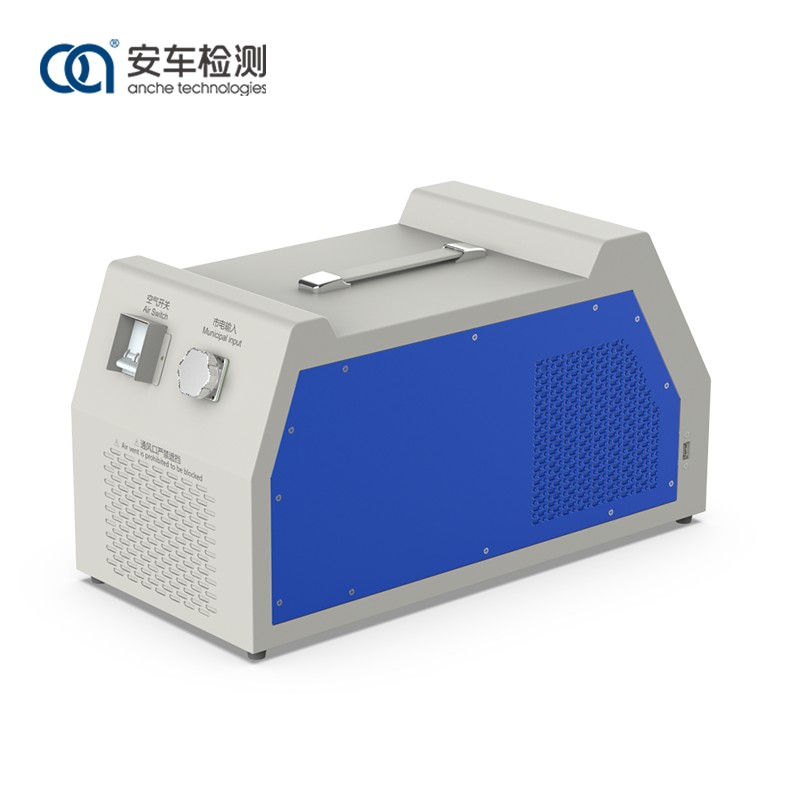

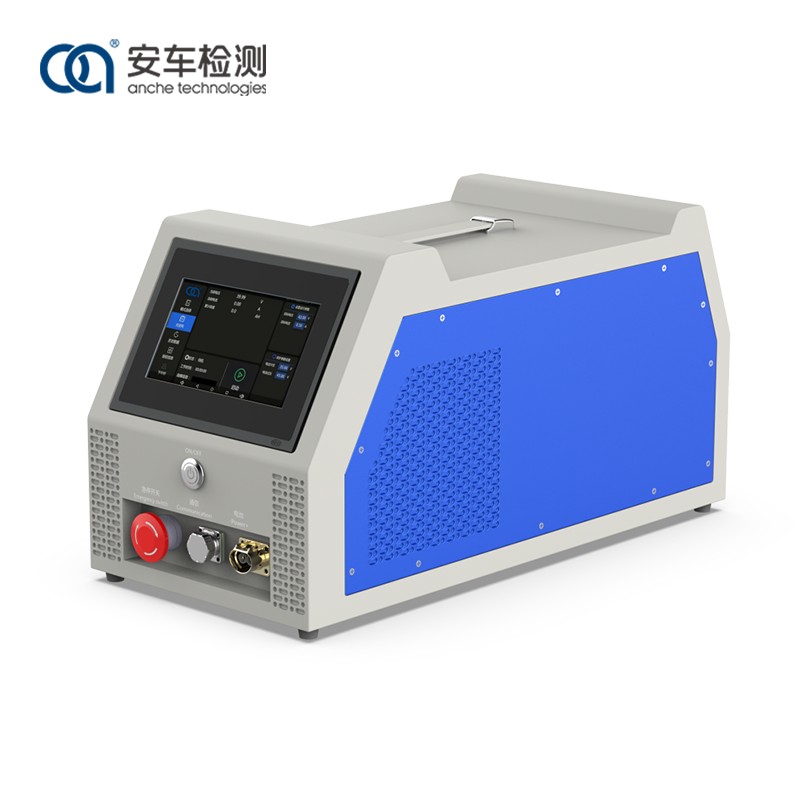

Lub Tsheb Hluav Taws Xob Tsheb Hluav Taws Xob Them Nyiaj Hluav Taws Xob / Tso Tawm

Lub tsheb hluav taws xob hluav taws xob them nyiaj / tso tawm yog ib qho khoom siv hluav taws xob them thiab cov khoom tawm ntawm kev saib xyuas cov roj teeb lossis tag nrho cov pob roj teeb. Los ntawm kev tsim qauv ntawm kev pub mis rov qab mus rau cov phiaj xwm fais fab, nws ua tiav lub zog me me thaum xa cov kev yooj yim ntawm cov neeg ua haujlwm ua haujlwm ntawm kev mus ncig ntev. Nws ua tau zoo rau voltage sib txuam rau cov roj teeb tsheb thiab lub zog cia rau cov thawv, nrog rau kev saib xyuas thiab muaj peev xwm calibration thiab muaj peev xwm calibration thiab muaj peev xwm calibration.

Xa lus nug

Product Description

Daim Ntawv Thov Kev Pab Cuam

Electric Vehicle Battery Charger/Discharger

Qhov Zoo & Nta

1. Txhawb nqa ntau cov hau kev xws li built-in sau thiab sib txuas lus kom tau txais ib qho hluav taws xob nkaus xwb, ua kom muaj kev nyab xeeb them nqi thiab kev rho tawm cov txheej txheem.

2. Kev txhawb nqa dav voltage ntau lub roj teeb, haum rau roj teeb modules lossis pob nkawm txij nkawm ntawm cov sib txawv.

3. Txais cov fais fab kev ua kom tiav cov khoom siv hluav taws xob Bidirectional, lub hwj chim tso tawm tuaj yeem pub rov qab mus rau lub zog.

4. Yooj yim interface thiab yooj yim rau kev khiav lag luam.

Tsis

Tus qauv	Ntxau-nm20-5060
Kev pab fais fab	110V ~ 253V AC
Zaus heev	50 / 60HZ ± 5HZ
Qhov Siab Tshaj Tawm Zog	6kW (110V cov tswv yim, fais fab halved)
Tso zis voltage ntau	10 ~ 450V
Tso Tawm Tam Sim No	± 60a max
Cov Zauv Voltage Raug Raug	± 0.1% fs
Tawm Tawm Tam Sim No	± 0.5% fs
Them thiab rho tawm hom	CC-CV
Cua txias txoj kev	Yuam Kev Cua Txias
Dimension (l * h * h)	250 * 530 * 290mm
Qho hnyav	17Kg
Kev Pab Ntsuas Cell Feem Ntau Qhov Tseeb	50MV
Qhov ntsuas kub tau txais qhov tseeb	± 1 ℃
Lub zog muaj	0.99
Tam Sim No Ua Phem	<5%
