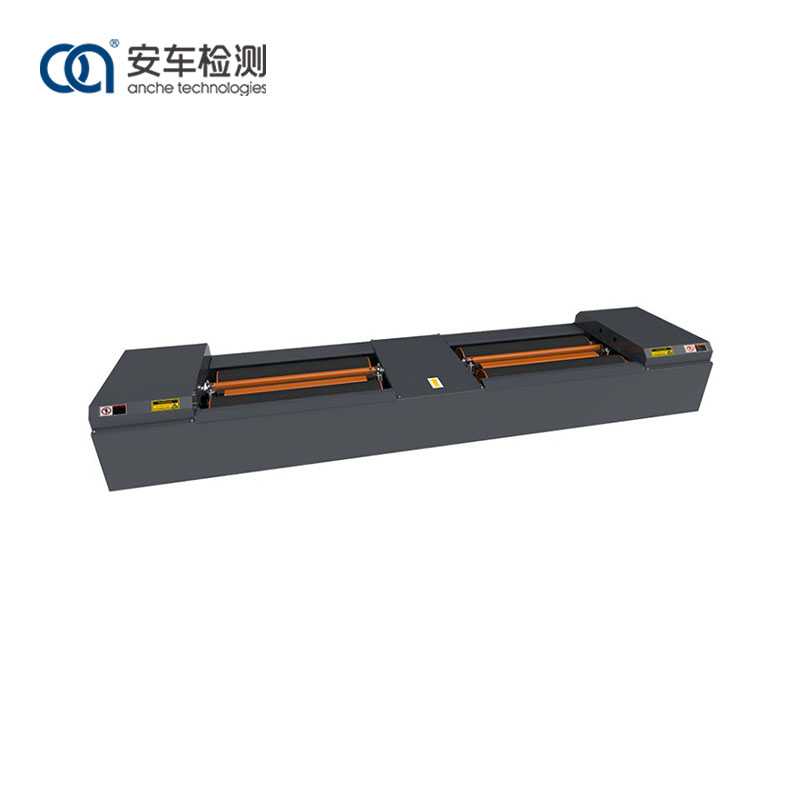

Anche 10-Ton cov menyuam nres tester yog tsim thiab tsim nruj me ntsis raws li Suav teb chaws tus qauv GBT13564 Cov menyuam rov qab rog hom tsheb nres tester thiab JJG906 Cov menyuam rov qab quab yuam hom nres testers.
Anche 10-Ton roller brake tester tuaj yeem kuaj qhov siab tshaj plaws braking quab yuam ntawm lub log, lub log retarding quab yuam, braking quab yuam sib npaug (qhov sib txawv ntawm lub zog ntawm lub log ntawm sab laug thiab sab xis) thiab lub sijhawm sib koom ua ke ntawm kev sib tsoo, yog li ntsuas qhov kev ua haujlwm ntawm ib lub qag. thiab tag nrho lub tsheb.
Nws txais kev tsim cov menyuam tsis sib xws, thiab nres lub cev muaj zog nrog cov menyuam thib peb kom txo tau qhov kev puas tsuaj ntawm cov menyuam hauv cov txheej txheem kuaj;
Qhov saum npoo ntawm cov menyuam yog kho nrog corundum, thiab cov adhesion coefficient yog ze rau qhov tseeb ntawm txoj kev nto;
High-precision braking quab yuam sensor yog saws;
Nws siv cov cuab yeej nqa tshwj xeeb, txhawm rau txo qhov cuam tshuam ntawm lub tsheb mus rau cov khoom siv, thiab pab txhawb kev tawm ntawm lub tsheb.
Kev ntsuas ceev yog xaiv tau: 2.5-5.0km / h
Rau qhov yooj yim ntawm cov tsheb nkag mus thiab tawm ntawm lub tester, lub cuab yeej yog nruab nrog sab laug thiab sab xis sab xis airbag lifting beams. Ua ntej lub tsheb tsav mus rau lub nres tester, lub photoelectric hloov tsis tau nyeem cov ntaub ntawv nyob rau hauv lub tsheb, thiab ces lub airbag lifting beam nce, cia lub tsheb mus smoothly nkag mus rau hauv lub ntaus ntawv; Thaum lub photoelectric hloov tau txais lub teeb liab nyob rau hauv qhov chaw, lub kaw lus xa ib qho kev hais kom ua, lub lifting beam nqis, thiab lub log tig nrog cov menyuam rau kev soj ntsuam; Tom qab kev tshuaj ntsuam xyuas tiav lawm, tus neeg sab nraud airbag lifting beam nce thiab lub tsheb tsav tau zoo ntawm lub tester.
Lub cev muaj zog yog tsim tshwj xeeb thiab tsim los xyuas kom meej tias qhov siab tshaj plaws braking quab yuam ntawm cov menyuam ua tau raws li qhov yuav tsum tau muaj ntawm qhov ntsuas qhov muaj peev xwm. Lub cev muaj zog torque lub thawv muaj lub zog ruaj khov thiab txaus torque. Lub cev muaj zog tsav cov menyuam teeb tsa los ntawm lub thawv torque kom tig lub tsheb log. Thaum lub log nres, cov tshuaj tiv thaiv quab yuam ntawm lub log tsheb thiab cov menyuam ua rau lub thawv torque ua viav vias. Lub braking quab yuam yog hloov mus rau hauv hluav taws xob teeb liab tawm los ntawm lub zog ntsuas qib ntawm lub hauv ntej kawg ntawm lub torque box thiab lub siab sensor ntsia rau nws. Tom qab ua tiav los ntawm kev tswj hwm hluav taws xob, nws tuaj yeem tso tawm los ntawm kev tswj hwm.
1) Nws yog welded los ntawm cov khoom square steel yeeb nkab thiab carbon steel phaj qauv, nrog cov qauv meej, lub zog siab, thiab ua haujlwm rau dov.
2) Nws siv lub siab thiab qis rau cov menyuam tsim, nrog rau peb cov menyuam nres lub cev muaj zog thev naus laus zis, txo cov log tsheb uas tshwm sim los ntawm cov menyuam thaum lub sijhawm tshuaj xyuas.
3) Qhov saum npoo ntawm cov menyuam raug kho nrog corundum, thiab cov coefficient adhesion yog ze rau qhov xwm txheej ntawm txoj kev.
4) High precision nres quab yuam sensors raug xaiv raws li cov khoom ntsuas, nrog cov ntaub ntawv raug thiab raug.
5) Lub teeb liab kev twb kev txuas interface txais ib tug aviation plug tsim, uas xyuas kom meej ceev thiab npaum installation, ruaj khov thiab txhim khu kev qha cov ntaub ntawv
Anche 10-Ton roller brake tester yog tsim rau cov kev lag luam sib txawv thiab cov teb, thiab tuaj yeem siv rau hauv lub tsheb tom qab kev lag luam rau kev saib xyuas thiab kuaj mob, nrog rau hauv cov chaw kuaj tsheb rau kev kuaj xyuas tsheb.
Qauv |
ACZ-10 |
ACMZD-10 (rau ob lub tsheb thiab maus taus) |
Tso cai qag load hnyav (kg) |
10,000 |
10,000 |
Ntsuas qhov siab tshaj plaws braking quab yuam (N) |
30,000 × 2 |
3,000 × 2 / 3,000 (maus taus) |
Braking force qhia yuam kev |
< ± 3% |
< ± 3% |
Roller loj (mm) |
245 × 1050 hli |
φ245 × 1050 (ntev) φ195 × 300 (luv luv) |
Sab hauv ntawm cov menyuam (mm) |
700 |
700 |
Sab nraud ntawm cov menyuam (mm) |
2800 |
2800 |
Qhov nruab nrab ntawm qhov sib nrug ntawm cov rollers (mm) |
447 |
469/300 ib |
Lub cev muaj zog (kw) |
2 × 11kw |
2 × 11kw (tsheb) 0.75kw (mob tsheb kauj vab) |
Ciam teb dimension (K * W * H) mm |
4000 × 960 × 400 (qhov siab yog 535withplate npog) |
3940 × 960 × 761 (qhov siab yog 855 nrog platecover) |
Roller nto daim ntawv |
Corundum |
Corundum |
Peb cov menyuam |
Yog lawm |
Yog lawm |
Ua haujlwm cua siab (MPa) |
0.6-0.8 hli |
0.6-0.8 hli |
Lifting method |
Airbag nqa |
Airbag nqa |
Motor fais fab mov |
AC380V ± 10% |
AC380V ± 10% |
Sensor fais fab mov |
