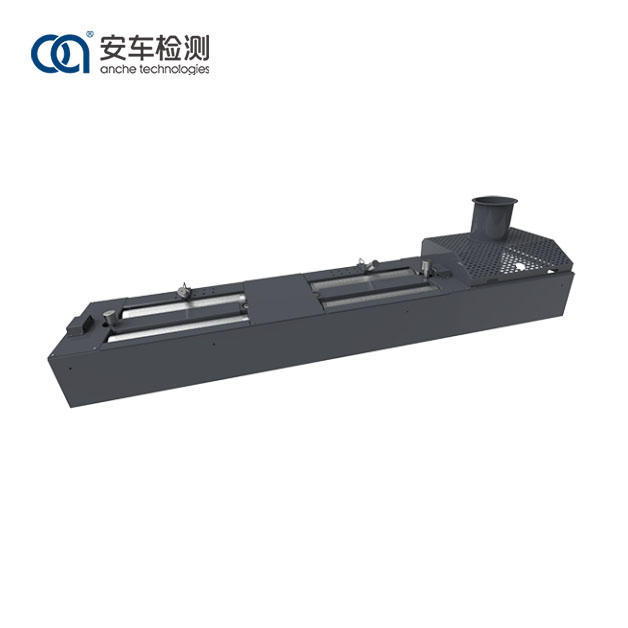

10 Tuj Chassis Dynamometer

Txoj cai ua haujlwm

Cov tsav tsheb ntawm lub tsheb tsav lub ntsiab thiab cov auxiliary rollers tig. Nyob rau hauv qhov tsis muaj kev swb ntawm lub log tsheb thiab cov menyuam qhov chaw, cov kab nrawm ntawm cov menyuam yaus yog qhov tsav tsheb ceev. Lub sensor ceev tau nruab rau ntawm cov menyuam nquag tso tawm cov teeb liab mem tes, thiab cov mem tes zaus yog proportional rau cov menyuam ceev.

Txoj kev tiv thaiv thaum tsav tsheb yog simulated los ntawm eddy tam sim no loading, thiab translational inertia ntawm lub tsheb thiab lub rotational inertia ntawm tsis tsav log yog simulated los ntawm flywheel inertia system.

Thaum lub excitation tam sim no ntawm lub tshuab eddy tam sim no cuam tshuam nrog lub rotating sab nraud magnetic teb, ib tug braking torque yog generated, uas reacts nyob rau saum npoo ntawm cov menyuam thiab ua rau lub S-zoo li tus siab sensor los ntawm lub caj npab quab yuam. Cov zis analog teeb liab ntawm lub sensor yog proportional rau qhov loj ntawm lub braking torque.

Raws li cov ntsiab lus ntawm lub cev, lub zog P tuaj yeem suav nrog lub tsheb nrawm (ceev) thiab traction force (torque).

Yam ntxwv ntawm 10-Ton Chassis Dynamometer:

1. Lub chassis dynamometer yog welded nrog square steel kav thiab high-zoo carbon steel daim hlau, nrog ib tug ruaj khov qauv thiab siab zog.

2. Qhov saum npoo ntawm cov menyuam tau raug kho nrog cov cuab yeej tshwj xeeb, nrog rau siab adhesion coefficient thiab hnav tsis kam;

3. Lub tshuab hluav taws xob siab-txias cua txias eddy tam sim no lub zog nqus cov cuab yeej tau txais, nrog kev ua tau zoo dua thiab kev teeb tsa yooj yim;

4. Cov khoom ntsuas ntsuas siv high-precision encoders thiab quab yuam sensors, uas tuaj yeem tau txais cov ntaub ntawv raug thiab raug;

5. Lub teeb liab kev twb kev txuas interface txais ib tug aviation plug tsim, uas ua kom ceev thiab npaum installation thiab ruaj khov thiab txhim khu kev qha cov ntaub ntawv;

6. Cov rollers yog qhov tseeb heev hauv kev ntsuas dynamic thiab ua haujlwm zoo.

Daim ntawv thov

Anche 10-tuj chassis dynamometer yog tsim thiab ua nruj me ntsis raws li Suav teb chaws tus qauv GB 18285 txwv thiab ntsuas txoj kev rau pa paug paug los ntawm roj av tsheb nyob rau hauv ob-ceev tsis ua hauj lwm tej yam kev mob thiab luv luv tsav tsheb hom, GB 3847 txwv thiab ntsuas txoj kev rau emissions los ntawm cov tsheb diesel nyob rau hauv kev nrawm nrawm thiab lub voj voog qis, nrog rau HJ / T 290 Cov cuab yeej tshwj xeeb thiab kev tswj xyuas kom zoo rau cov tsheb roj av emission test nyob rau hauv luv luv transient loaded hom, HJ / T 291 Cov cuab yeej tshwj xeeb thiab kev tswj kom zoo rau cov tsheb roj av emission test nyob rau hauv khov kho-lub xeev loaded hom, thiab JJ / F 1221 Calibration specification rau chassis dynamometers rau automotive emission kuaj. Anche chassis dynamometer yog qhov tsim nyog hauv kev tsim, ruaj khov thiab ruaj khov hauv nws cov khoom, meej hauv kev ntsuas, yooj yim hauv kev ua haujlwm, kev ua tiav hauv nws txoj haujlwm, thiab pom tseeb hauv cov duab. Cov txiaj ntsig kev ntsuas thiab cov lus qhia qhia tuaj yeem tshwm sim ntawm lub vijtsam LED.

Anche chassis dynamometer yog tsim rau cov kev lag luam sib txawv thiab cov teb, thiab tuaj yeem siv rau hauv kev lag luam tsheb tom qab kev kho thiab kuaj mob, nrog rau hauv cov chaw kuaj tsheb rau kev tshuaj xyuas tsheb.

Parameters ntawm 10-Ton Chassis Dynamometer
